Diamond Tubes

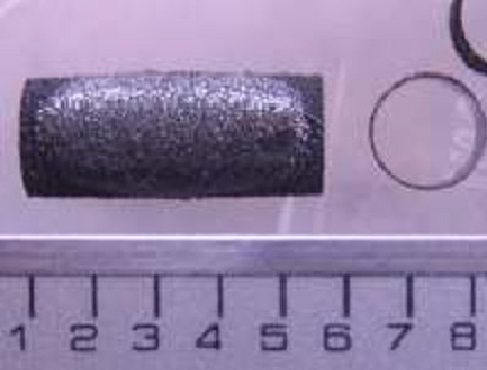

Man-made diamond tube waveguide
Solid diamond tube waveguide for Ka-band, 34 GHz, wakefield acceleration.

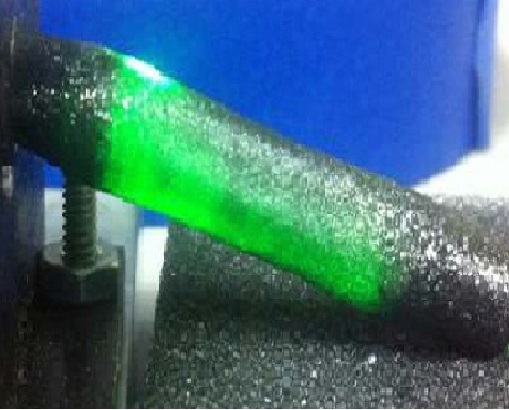

Synthetic diamond tube illuminated with green laser
White diamond tube internally illuminated with a green laser. Tube ID is 5 mm, wall thickness is 1 mm, and length is 40 mm.

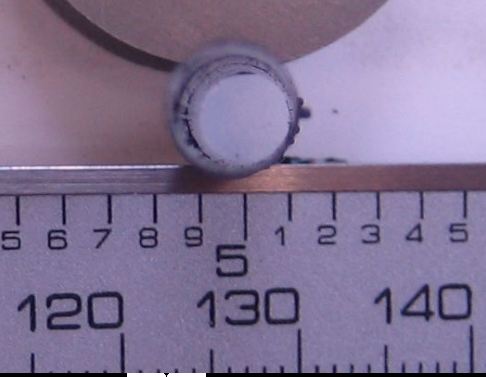

40 mm diamond tube
40 mm diamond tube.

Polycrystalline Diamond Wafers

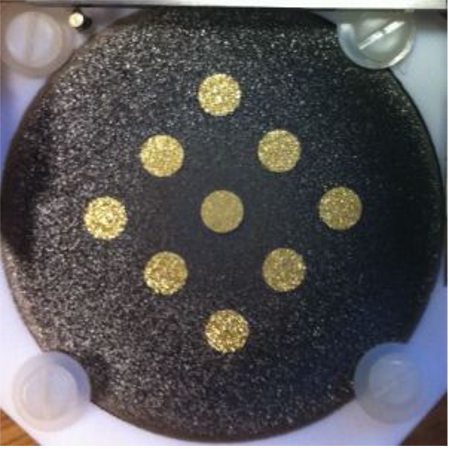

Free-standing polycrystalline diamond wafer
Free-standing polycrystalline diamond wafer, 6.6 cm outside diameter, with nine gold electrodes for charge collection.

Collection Distance

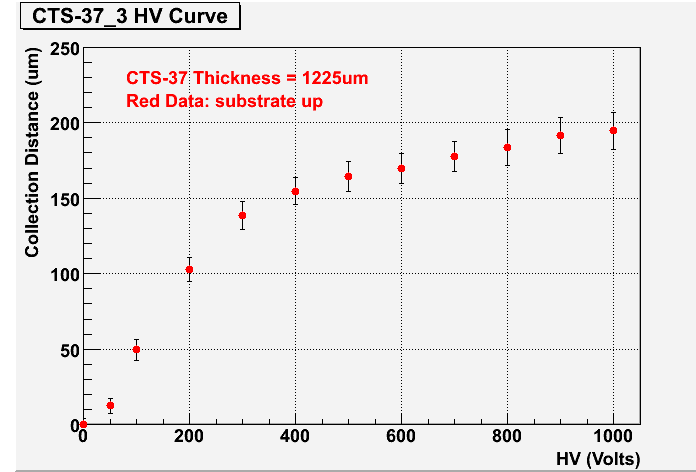

Charge collection distance in CVD diamond
Charge collection distance plotted against applied voltage. Polycrystalline diamond grown using the CTS-6U reactor reached over 200 micron collection distance, exceeding electronic performance requirements for LHC detector grade material.

Particle and Radiation Detectors

CVD diamond is useful for radiation detector applications because it combines high radiation hardness, low leakage current, high carrier mobility, wide bandgap behavior, and thermal stability. Carat Systems has produced detector-grade polycrystalline diamond material with charge collection distance above 200 microns.

Single Crystal Gems

Seed Crystal Growth in a Carat System

Watch 15 hours of CVD diamond growth in just a few seconds.

Gems Manufactured by a Carat Systems Customer

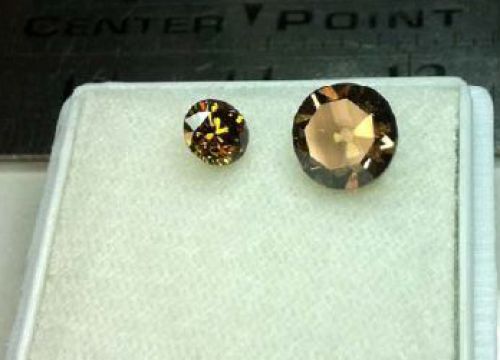

CVD diamond gems
0.5 and 1.3 ct gems grown from HPHT seeds using plasma CVD techniques. The bright yellow color in the 0.5 ct stone is generated from the embedded HPHT seed and grown over with CVD layers on both sides.
3 carat rough CVD diamond sample
A 3 ct rough CVD diamond sample.

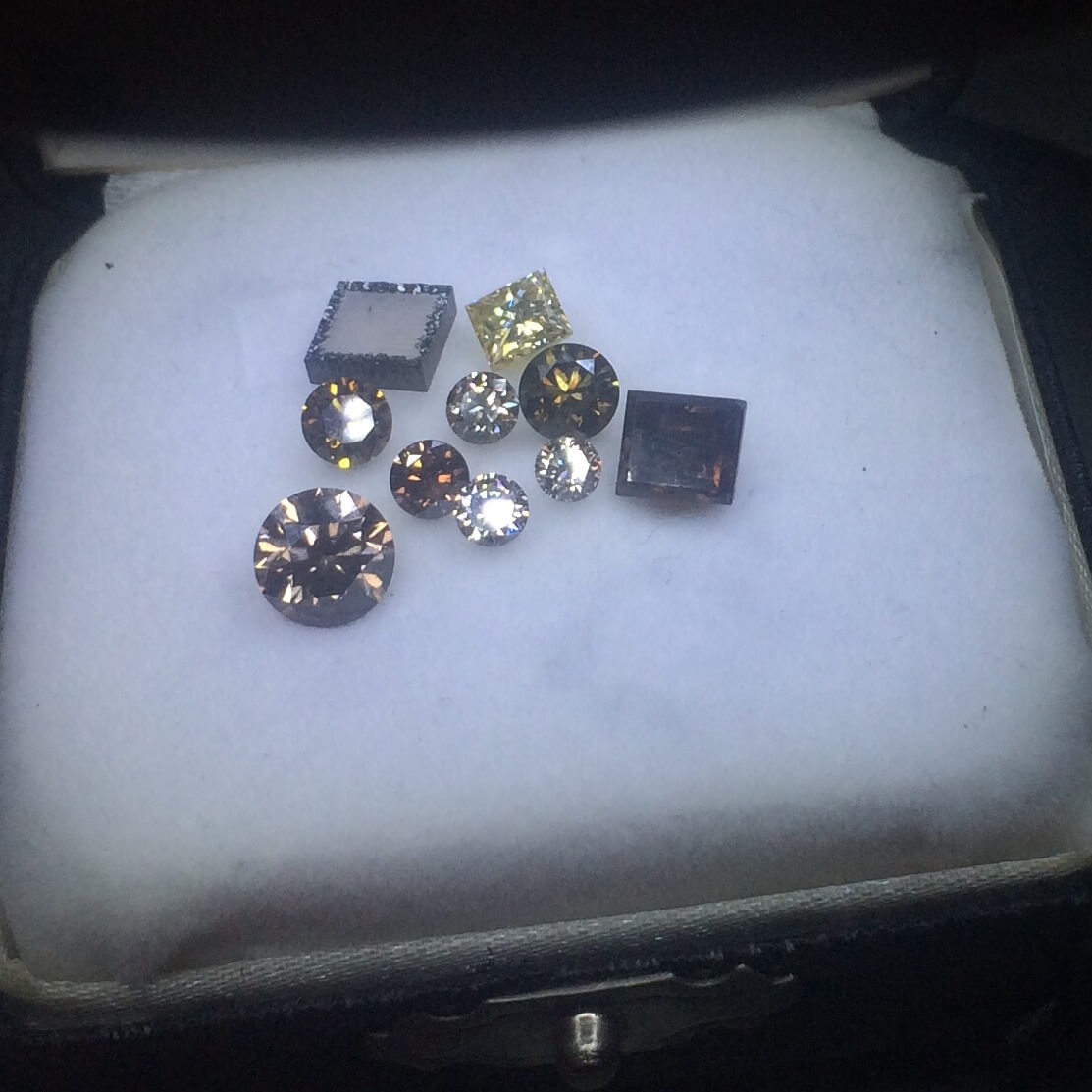

CVD diamond gems cut from CTS grown diamond
Miscellaneous gems cut from CTS grown diamond, including fancy yellow princess cut, Asscher cut, and graded white brilliants.

Gems grown at Carat Systems.

More info on Gems

Ultra-Nanocrystalline Diamond

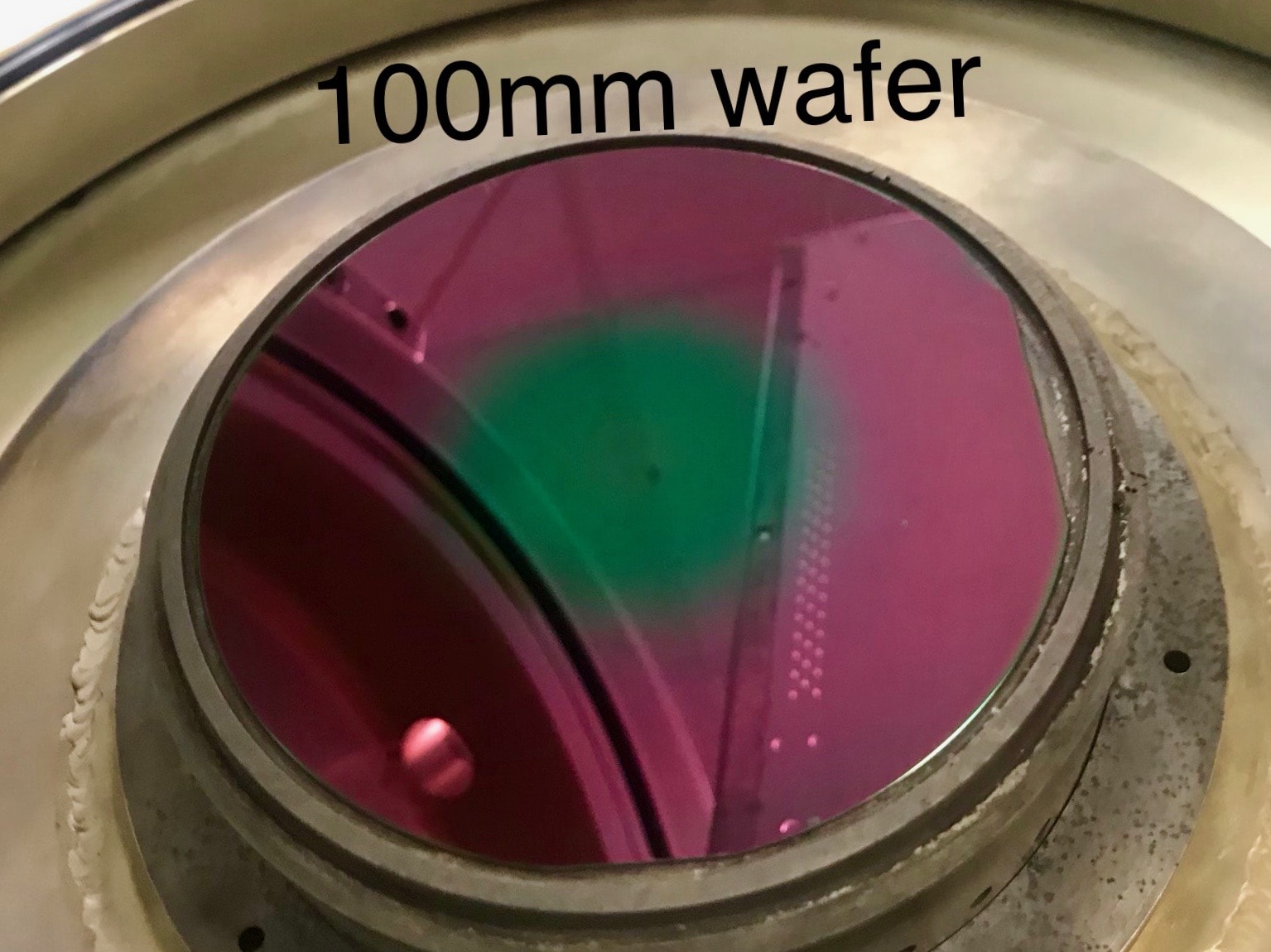

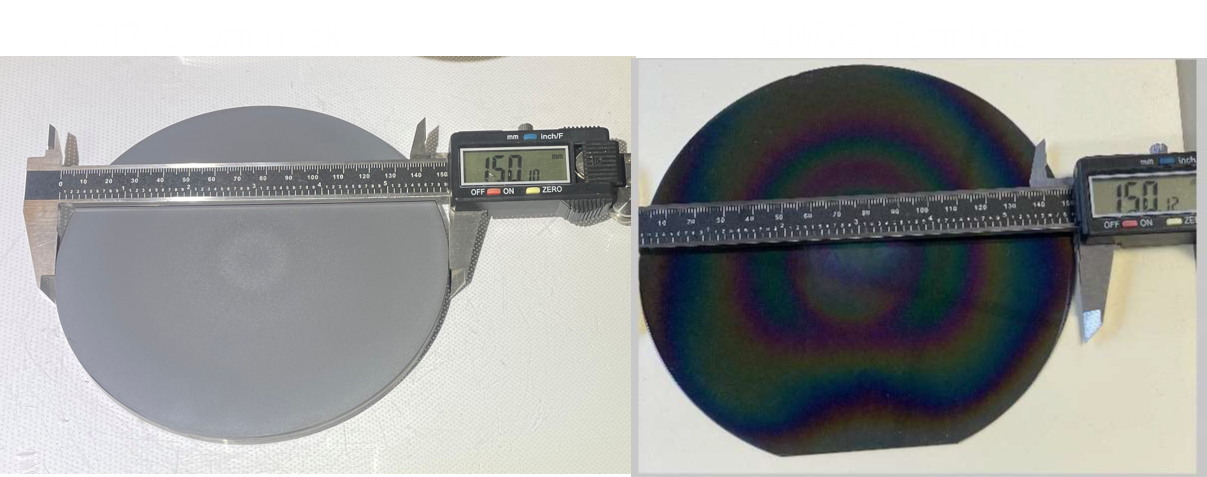

Ultra-nanocrystalline diamond coated silicon wafer
0.5 micron thick, 4 inch outside diameter, ultra-nanocrystalline diamond coated silicon wafer.
Ultra-nanocrystalline diamond application image

NV Center Material

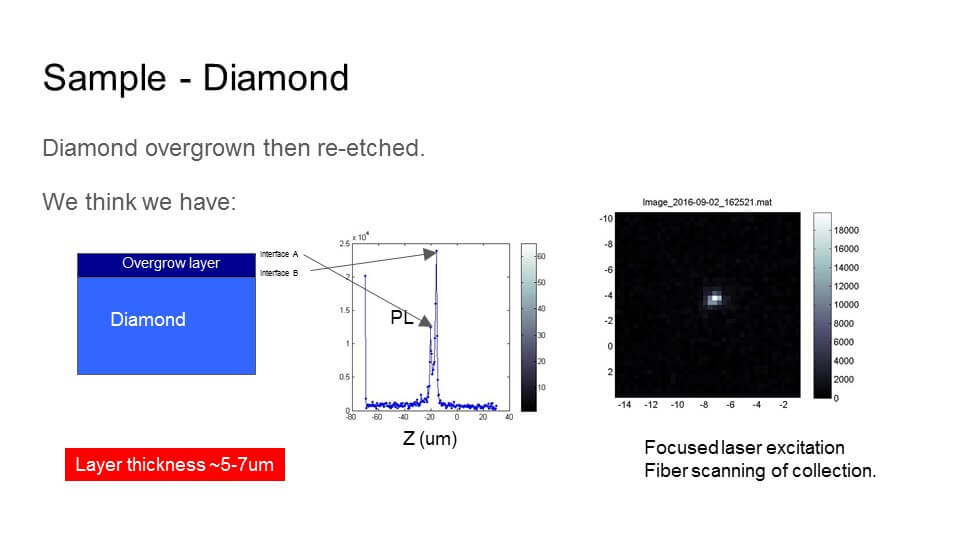

NV center material slide 2

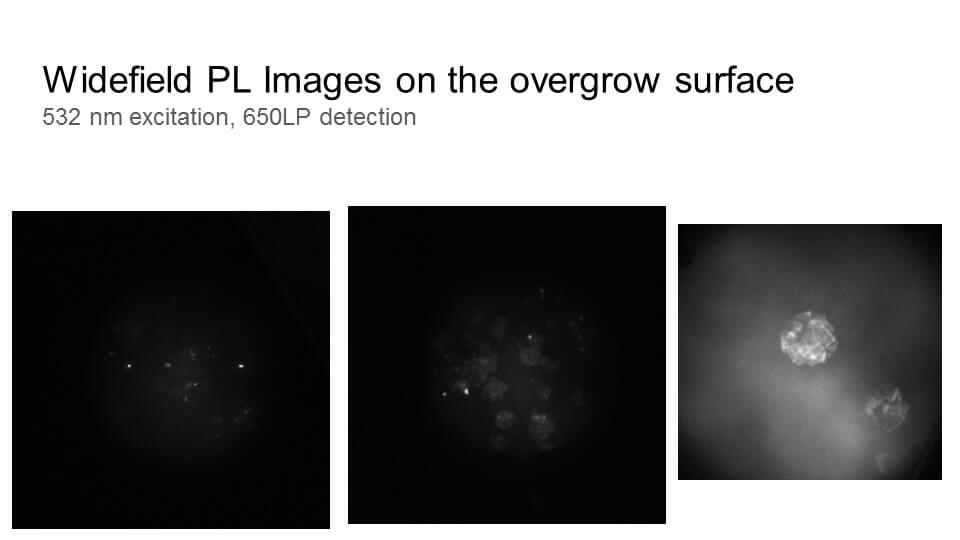

NV center material slide 3

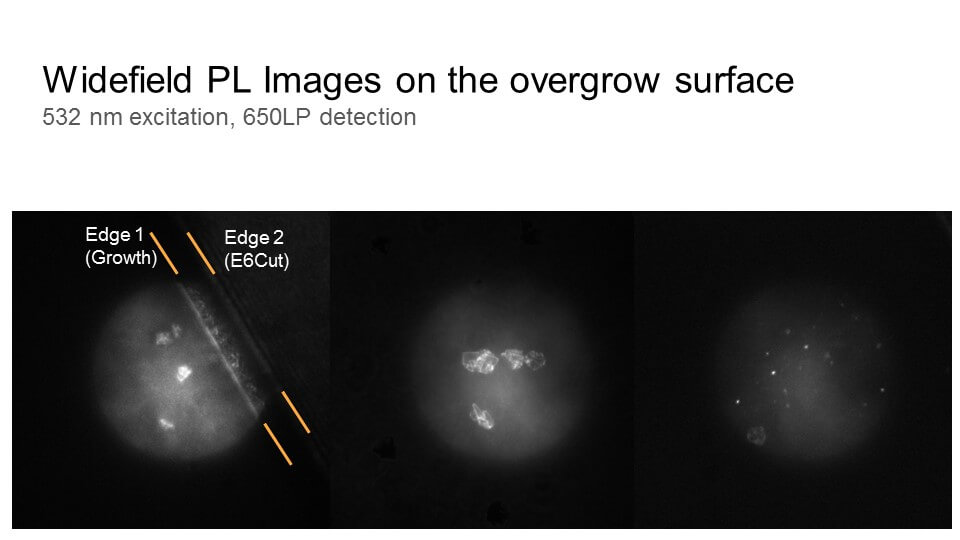

NV center material slide 4

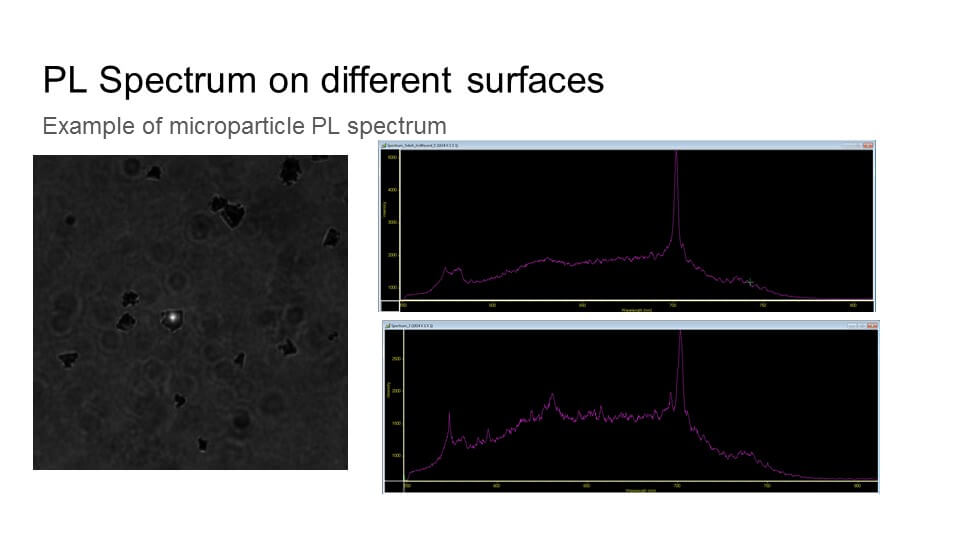

NV center material slide 5

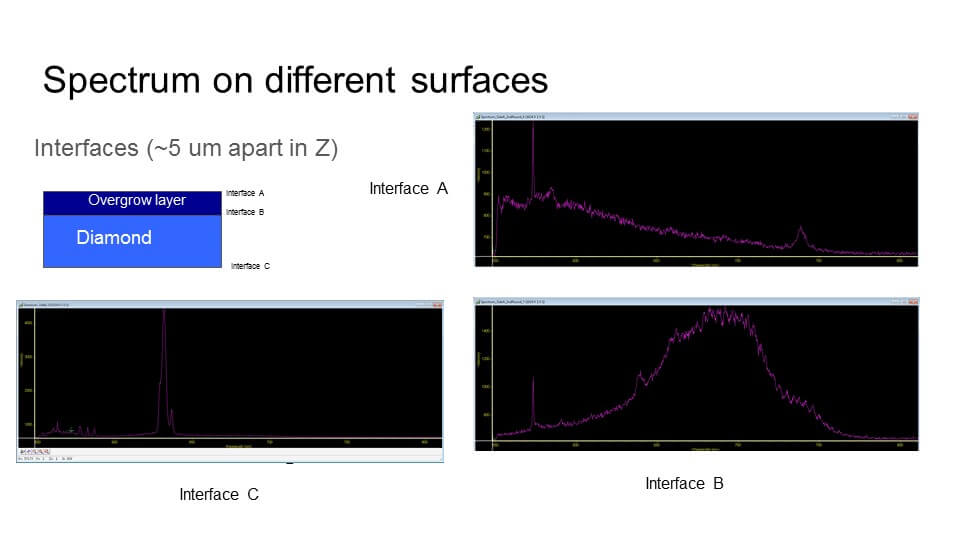

NV center material slide 6

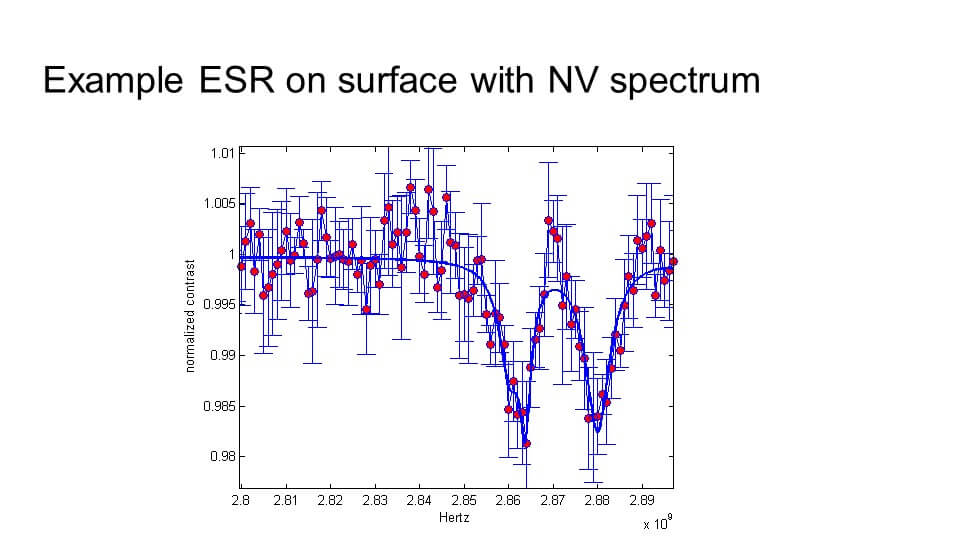

NV center material slide 7
